Creating Custom Cardiac Rhythms

Introduction to Custom Rhythm Creation

The Cardiac Rhythm Simulator’s advanced feature, Custom Rhythm Creation, is a powerful tool designed for educational purposes. It enables users to craft any type of cardiac rhythm, providing an immersive learning experience in cardiac electrophysiology.

Understanding Cardiac Rhythms

Cardiac rhythms are composed of multiple cardiac cycles. Each cardiac cycle consists of various waves or segments, such as the P wave, PR segment, S wave, T wave, QRS complex, and for atrial flutter, the F wave.

Key Properties of Waves and Segments

Each wave or segment in a cardiac cycle has specific characteristics:

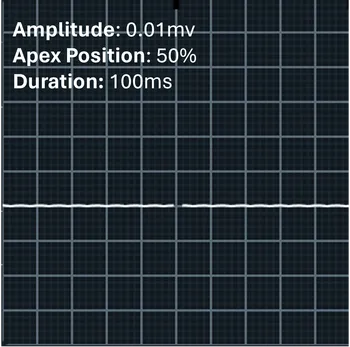

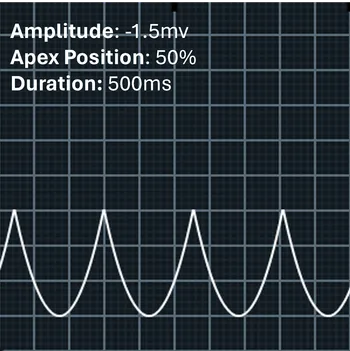

Amplitude: This is the voltage in millivolts relative to the baseline. It indicates the height (positive amplitude) or depth (negative amplitude) of a wave.

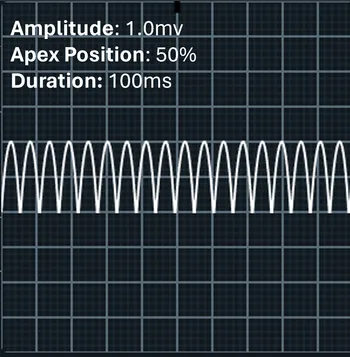

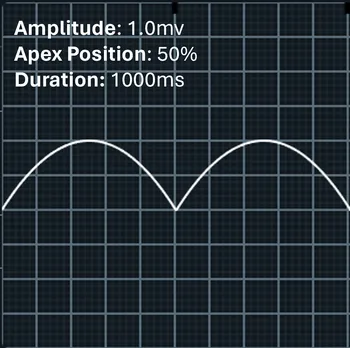

Duration: Measured in milliseconds, duration represents the length of a specific wave or segment.

Apex Position: A crucial aspect of wave formation, the apex position ranges from 5% to 100%, where 50% signifies the midpoint of the curve. Adjusting the apex position affects where the peak of the wave occurs within its duration.

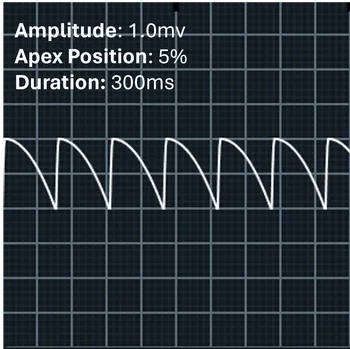

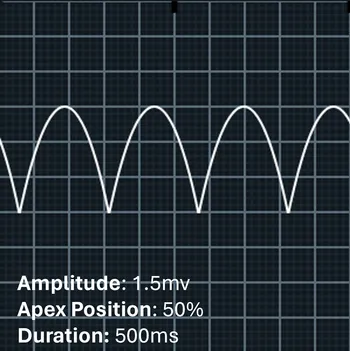

Image of the apex at 5% with positive amplitude

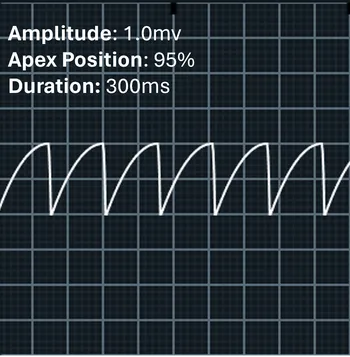

Image of the apex at 95% with positive amplitude

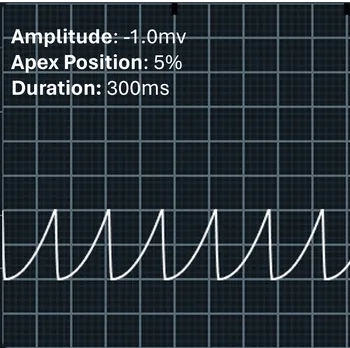

Image of the apex at 5% with negative amplitude

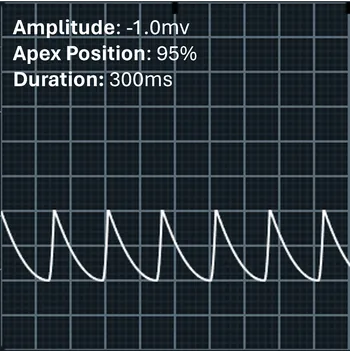

Image of the apex at 95% with negative amplitude

Start and Stop Voltage: These values determine the voltage at which a wave or segment begins and ends. By default, waves start and end at the baseline (0mV), but you can specify different start and stop voltages to create continuous transitions between segments or to represent specific cardiac conditions.

Start Voltage: The voltage level at which the wave begins. Setting a non-zero start voltage allows the wave to continue from the end voltage of the previous segment, creating a smooth transition.
Stop Voltage: The voltage level at which the wave ends. This becomes the starting point for the next wave or segment in the sequence, enabling continuous waveforms without abrupt jumps to baseline.

Using start and stop voltages effectively allows for creating complex, realistic cardiac waveforms where segments flow naturally into one another, better representing the continuous electrical activity of the heart.

Building a Wave: From Concept to Creation

Each wave instance (comprising amplitude, apex position, and duration) starts and ends at the baseline voltage, forming a complete curve. For a wave that begins at 0, rises to 2 millivolts, drops to -2 millivolts, and returns to 0, you would create two instances of the wave with varying amplitudes and apex positions. This process allows for intricate wave shapes and directions, accommodating complex rhythm patterns.

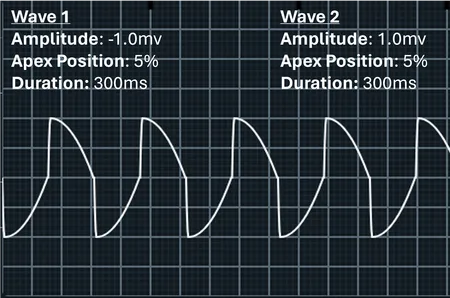

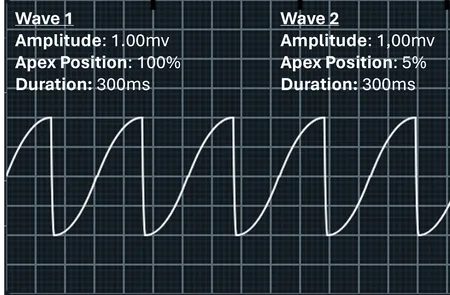

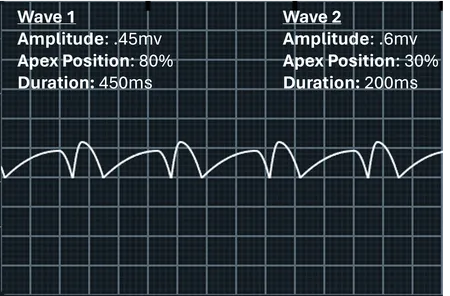

Image of multiple waves chained together

Sequential Flow of Custom Rhythms

Custom rhythms can include multiple cardiac cycles. Users can add new cycles using the Add Cycle button, enabling the creation of diverse and unique rhythms within a single simulation.

When creating a rhythm, the simulator starts with the first cycle and progresses through subsequent cycles, repeating them continuously. This sequential flow allows for an array of cycles with varied durations, amplitudes, and apex positions for each wave and segment.

Heartbeat Calculation in the Cardiac Rhythm Simulator

Overview

The Cardiac Rhythm Simulator offers a straightforward and effective method for calculating heartbeats per minute (BPM). Designed to be accurate for both normal and a wide range of abnormal rhythms, this simple yet robust approach ensures users can reliably determine the heart rate from the rhythms they create or study.

The Process of Calculating Heartbeats Per Minute

Repetition of the Defined Rhythm: The first step involves repeating the defined rhythm 20 times. This repetition ensures a sufficient sample size to accurately calculate the heart rate.
RR Interval Calculation: The simulator then calculates the RR intervals. The RR interval is the time between successive R waves, which are crucial markers in an ECG waveform representing ventricular depolarization.
Averaging RR Intervals: After calculating the RR intervals, the tool averages these intervals together. This average provides a consistent measure of the time between heartbeats, forming the basis for calculating the BPM.
Heart Rate Calculation: Using the average RR interval, the simulator applies a mathematical formula to convert this interval into BPM. The formula is based on the principle that BPM is inversely proportional to the RR interval duration.

Requirement for R Waves in the Calculation

Importance of R Waves: The presence of R waves with a duration greater than zero is essential for this calculation. R waves are pivotal in defining each cardiac cycle’s timing and, consequently, the rhythm’s overall rate.
Limitation in Absence of R Waves: If the cardiac cycles within the rhythm lack R waves or have R waves with zero duration, the simulator cannot calculate the heart rate. This limitation underscores the importance of accurately defining R waves in the rhythm creation process.
